How to Choose the Right Tilt Angle for Your Solar Mounting System |Art Sign Mar 23,2026

When designing a solar mounting system, many people ask the same question: what is the best tilt angle for solar panels?
In fact, there is no single answer. The best angle depends on several factors, such as latitude, local weather, snow, rain, and wind conditions. Choosing the right tilt angle can help increase power generation and protect the solar system for many years.
At ART SIGN, we have more than 20 years of experience in solar mounting solutions. Here are some basic rules that can help you choose the right tilt angle.
1. The Latitude Rule
The simplest way to choose a tilt angle is to look at the latitude of the installation location. In many cases, the tilt angle is close to the local latitude.
For example:
Low latitude areas (near the equator)：Countries in Southeast Asia, Africa, or South America usually use 5°–15° tilt angles, because the sun is high in the sky most of the year.
Middle latitude areas：Many solar projects in countries such as Spain, Turkey, the southern United States, or China often use 20°–30° tilt angles.
High latitude areas：In places like Northern Europe, Canada, or the northern United States, the sun is lower in winter, so a steeper angle of 35°–45° is often used.
Using the correct tilt angle can help solar panels receive more sunlight throughout the year.
2. Snow and Rain Conditions
Weather also plays an important role when choosing the tilt angle.
Snowy areas：If a solar project is located in regions with heavy snow, a steeper tilt (usually above 35°) is recommended. This helps snow slide off the panels more easily and reduces pressure on the solar mounting structure.
Rainy or dusty areas：Even in warm regions, a minimum tilt of about 10° is recommended. If the panels are completely flat, rainwater and dust may stay on the surface. Over time, this can reduce power generation. A small tilt allows rain to wash the panels naturally.
3. Wind and Structural Safety
While a larger tilt angle can improve sunlight exposure in some regions, it also increases wind load.

Solar panels with large tilt angles can act like a sail during strong winds. In windy areas or coastal regions, engineers sometimes choose a slightly lower tilt angle to improve system stability and reduce structural cost.

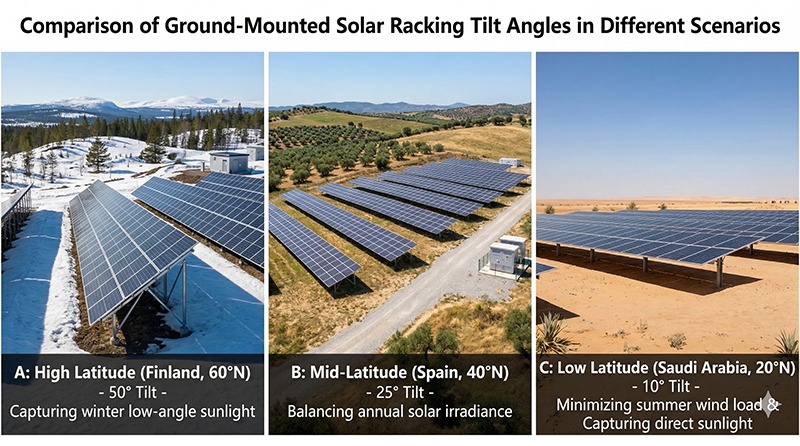

solar-mounting-tilt-angle-comparison

4. Flexible Angle Solutions from ART SIGN
In some projects, customers want the ability to adjust the solar panel angle based on different seasons or installation conditions.

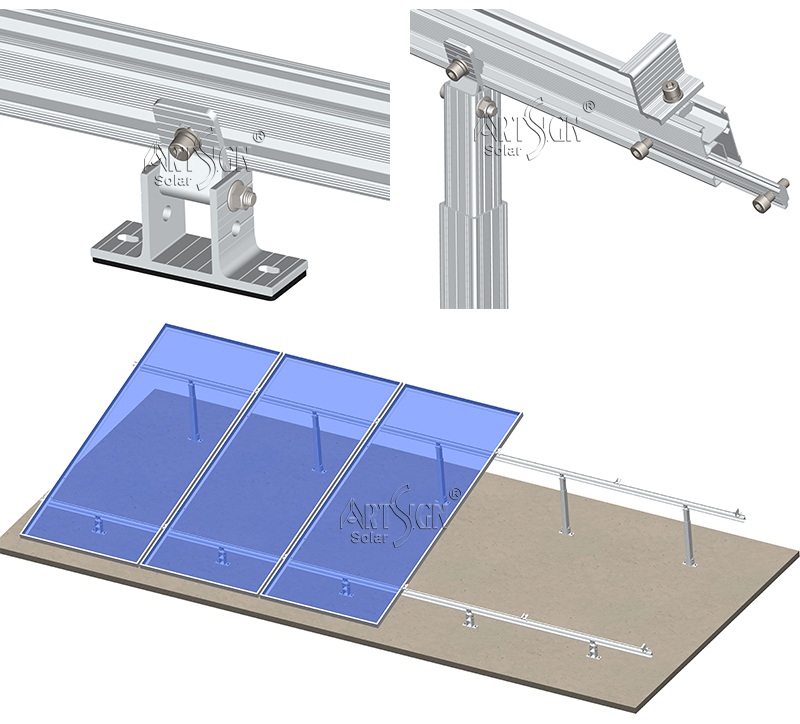

To meet this demand, ART SIGN provides adjustable solar mounting systems with adjustable tilt kit. This design allows installers to easily change the tilt angle of the solar panels during installation. It offers greater flexibility and helps optimize energy production for different locations.
These adjustable solar mounting brackets are widely used for rooftop and ground solar projects, especially where customers want a simple and flexible installation solution.

Choosing the right tilt angle is an important step in designing an efficient solar mounting system. The best angle depends on latitude, snow, rain, and wind conditions.

With the right design and mounting solution, solar panels can generate more electricity and last longer.

If you are planning a solar project and need professional solar mounting solutions, the ART SIGN team is ready to help you find the best system for your project.

For any inquiry for best solar panel structure, please contact us, E-mail: sales@artsign.net.cn, Whatsapp / Wechat Skype: +86 18030235875, thanks
